Your thermostatic head displays a logo when you wake it up?

Here below are all the logos with their meaning:

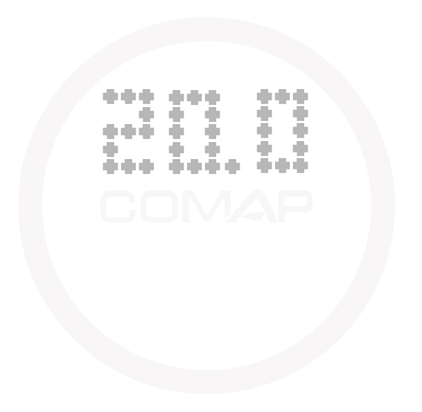

  • A temperature :

This corresponds to the set temperature sent to your thermostatic head.

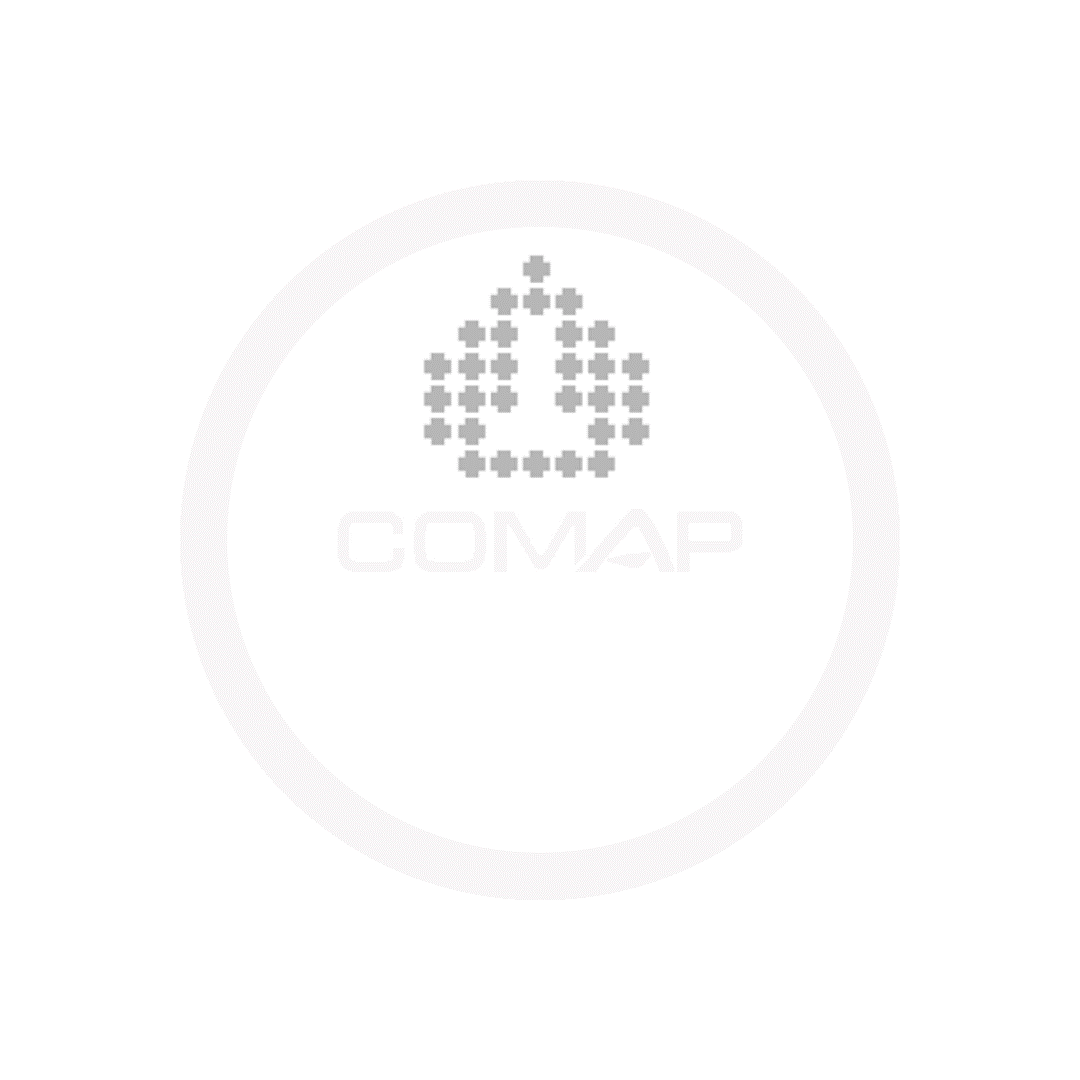

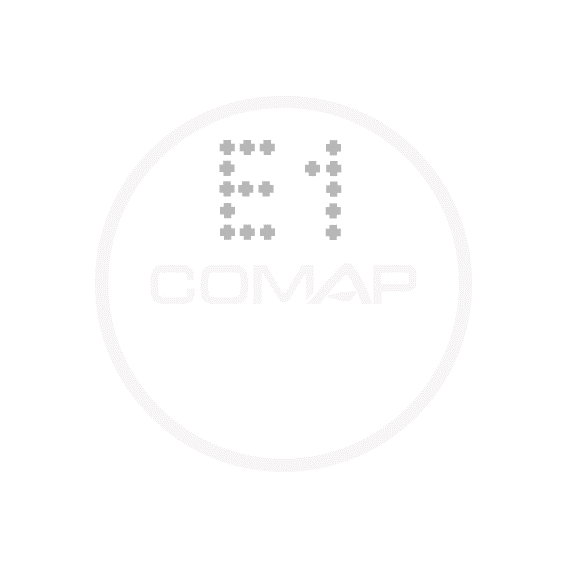

  • An "E" followed by a number, or a head plugin in:

The calibration of your head is inconsistent or the radiator valve was not detected during calibration.

  1. Remove the head from the radiator.
  2. Remove the batteries for 30s then put them back.
  3. Put the head back on the radiator
  4. Put the batteries back in the head

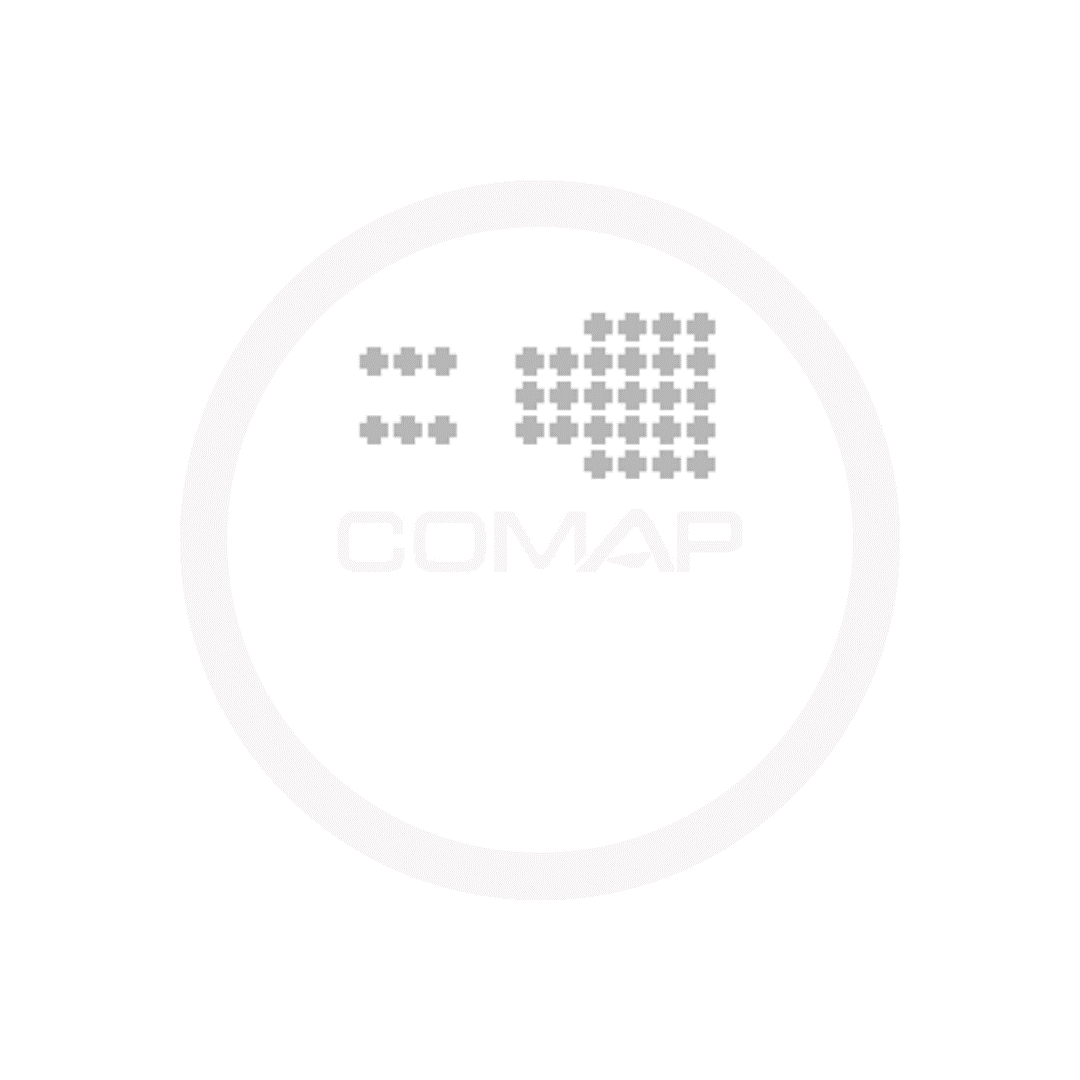

  • A flame and a cross:

The "Summer Mode" is activated, for more information, you may read the following article: "Summer" Mode.

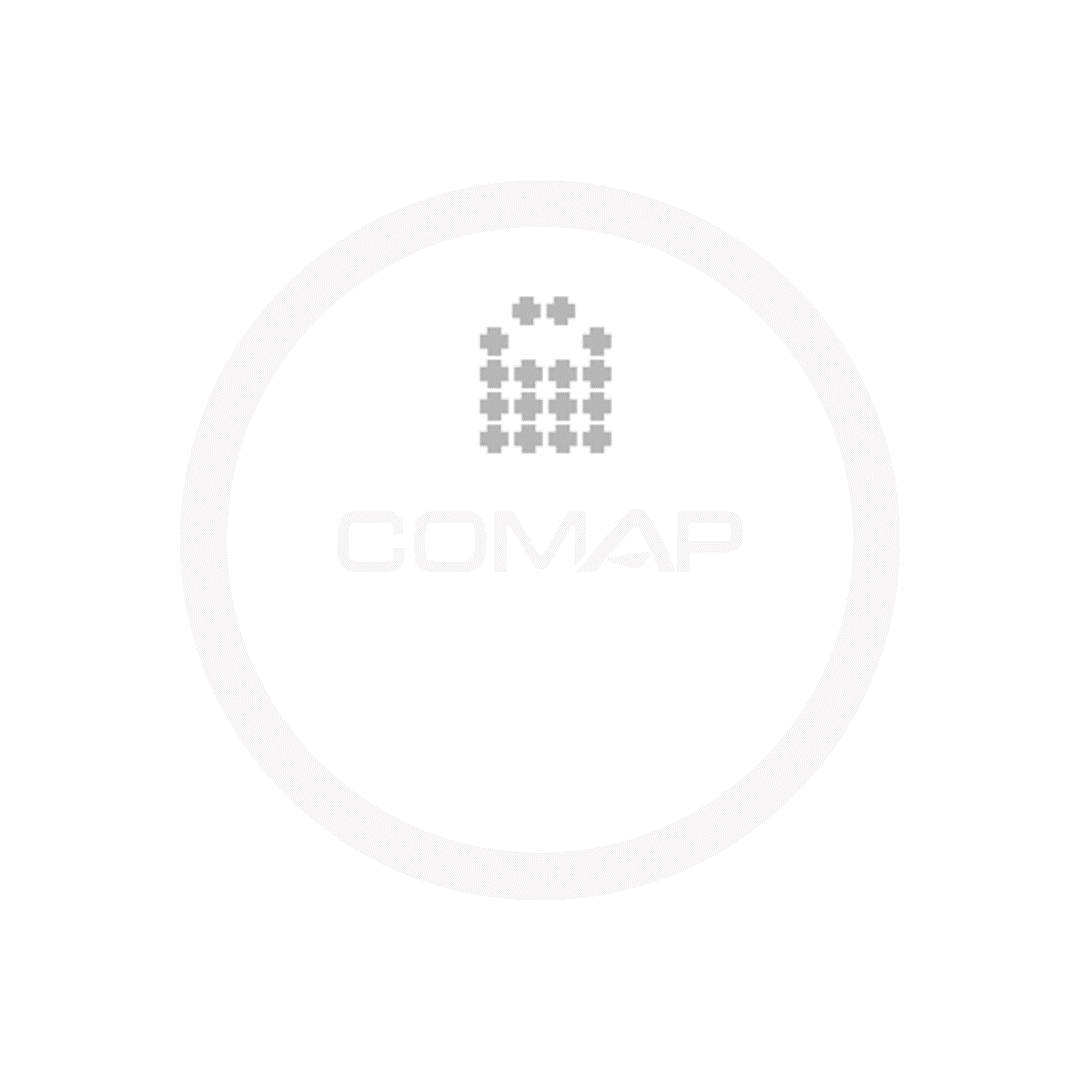

  • A lock and a temperature:

The "Maximum Temperature" mode is activated, for more information you can consult the following article: Maximum Temperature (Only for connected thermostatic heads).
